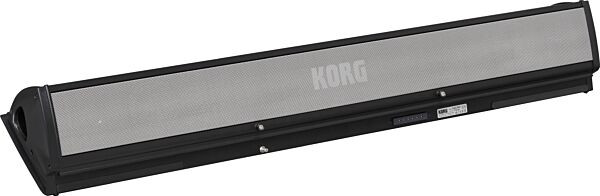

Korg PAAS MKII Amplification System

The optional Pa Amplification System PaAS MK2 delivers powerful, high-fidelity sound, and can be connected with no cable to our flagship arranger Pa5X by way of the Smart Connect system. It can also be used with our previous models, like the Pa4X, Pa3X or Pa3XLe.

Adapt the settings to each playing situation

With Pa5X you can choose a different Waves MaxxAudio® mastering preset for the audio outs and the headphones, or the PaAS MK2 speaker system itself. Each of the separate Waves presets contain settings for a 7-band full parametric equalizer and for the MaxxAudio® Suite. Settings can be different for each of the outputs, line-out or speaker system.

This is great for using the PaAS MK2 as an independent monitoring system on stage or at home. You can set the output level, EQ and MaxxAudio® values for the PaAS MK2, while the main outputs and the headphones use a different preset. This is perfect for adjusting the close monitoring level and sound separately from the stage amplification system.

Make your own adjustments to shape your sound

The full-parametric equalizer and the great [powerful] Waves MaxxAudio® tools will help you refine the presets for each room and each listening environment where you are going to play. A dedicated equalizer curve for your home or stage environment can be saved as your own user-preset. You can recall it every time you like. It is an incredibly flexible system to adapt your speakers to the environments you are playing in.

Specifications:

• System: 3-Channel Amplification System
• Power: 2 x 30 Watt (Middle/High Frequency) + 1 x 60 Watt (Subwoofer)
  (using any Pa5X model) 2 x 20 Watt (Middle/High Frequency) + 1 x 40 Watt (Subwoofer) (using previous models, like Pa4X, Pa3X, Pa3XLe)
• Speakers: 5 Speakers: 2 Middle range (80 mm) + 2 Tweeters + Dual Coil Subwoofer (130 mm)
• Cabinet: Aluminum case with Bass Reflex System
• Connectivity: Easy connection of all necessary signals and power using the special.
  Smart Connect system. No cables and dedicated power supplies required!
• Dimensions (W x D x H) : 992 x 173 x 137 mm
• Weight: 6.5 kg
